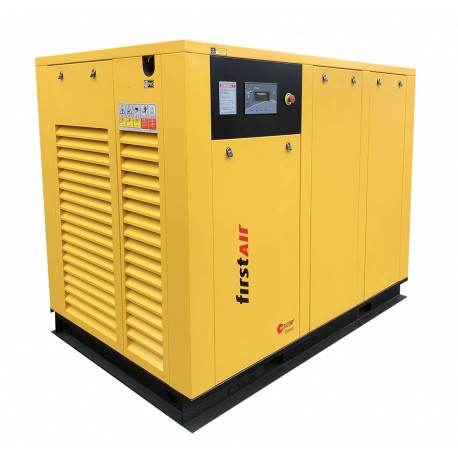

FAS 75 — Air cooled compressor (75 kW); The FAS 75 screw compressors are equipped with a direct drive, which is one of the most economical drives for generating compressed air. Thanks to an almost loss-free energy transmission of over 98%, direct drives achieve the highest degree of efficiency and, by protecting the drive, also contribute to the longevity of the components.
| Height | 1694 mm |
|---|---|
| Width | 1344 mm |
| Length | 2250 mm |
| Air discharge (max.) | 13,00 m3/min |
| Weight | 2250 kg |
| kW size | 75 kW |
| Частота | Да |
High efficient rotary screw compressor
Air cooled
Maintenance friendly design
Direct drive
Operating pressure: 8 to 10 bar(g) (13 bar on request)
Flowrate: 11.70 — 13.00 m3/min
Motor nominal power: 75 kW
With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class F
firstAir is a brand of ALMiG Kompressoren GmbH
