FAS 6-AT

High efficient rotary screw compressor

Air cooled

Mounted on 200 Liter air receiver

Including refrigerated air dryer

Maintenance friendly design

V-belt drive

Operating pressure 8 to 10 bar(g)

Flowrate 0.70 m3/min — 0.76 m3/min

Motor nominal power 5,5 kW

With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F

Dimensions (LxWxH): 1500 mm x 700 mm x 1550 mm

Weight: 445 kg

With pre- and post-filter and condensate drain

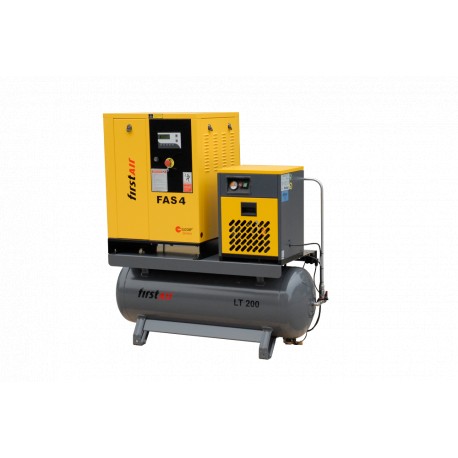

Picture similar to product
