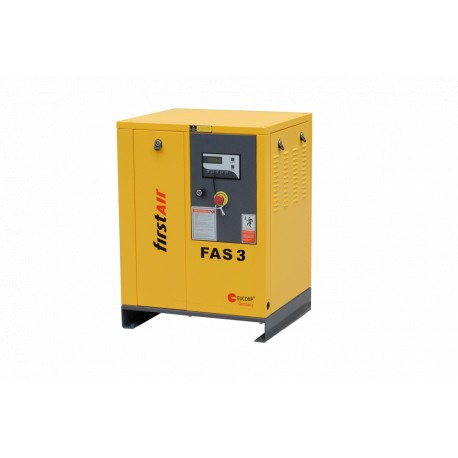

FAS 3 — Air cooled compressor (3 kW); Small, but nice! The FAS series already starts at 3 kW and impresses with its advantages even in its smallest performance class. firstAir offers a simple design that generates the compressed air you need solidly and reliably.

В наличии

Data sheet

Детали

Height	890 mm
Width	600 mm
Length	660 mm
Air discharge (max.)	0.36 m3/min
Weight	220 kg
kW size	3 kW
Частота	Да

More info

High efficient rotary screw compressor

Air cooled

Maintenance friendly design

V-belt drive

Operating pressure 8 to 10 bar(g)

Flowrate 0.32 m3/min — 0.36 m3/min

Motor nominal power 3 kW

With Driving motors classified in IE3 energy efficiency class, Protection Level IP 55, Insulation Class Type F

Also available with 200 liter air receiver + Dryer (FAS 3-AT)

Dimensions (LxWxH): 660 mm x 600 mm x 890 mm

Weight: 220 kg
